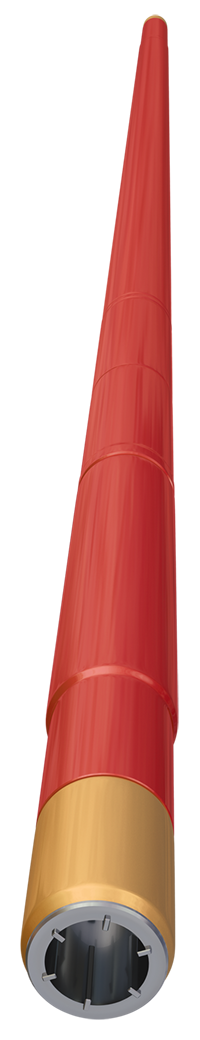

HY-PERFORM Drilling Motors
- Sizes: 4-3/4”, 6-3/4”, 8″
- Straight Hole and Directional Applications
- Slick or Stabilized
- Average ROP ~ 80-100 ft/hr
- WBM, OBM, Air & Foam Compatible
Power Section
- DuraMax® Elastomers (G-Rubber)
- High OBM Resistance
- Delivers 50% more torque and power downhole compared to standard hard rubbers (HR)
- Can withstand higher differential pressures
- Can compete with even-walled motors in harsh conditions
- Compatible with OBM, WBM, Air & Foam ~ 265oF (130oC)
- Chrome and Carbide Rotor Coatings
- Optimized compression fit for water-based mud, oil-based mud & high-temperature applications
- Stator is boroscoped before and after every job
Transmission Section
- Reliable titanium flex shaft less susceptible to failures due to fewer moving parts
- In-depth inspection e.g. Magnetic Particle Inspection for cracks
Bearing Section
- Mud-lubricated
- Rock-bit ball axial thrust bearings and carbide radial bearings
- Tighter tolerance on axial and radial bearing gap rerun criteria
Spec Sheets Downloads
